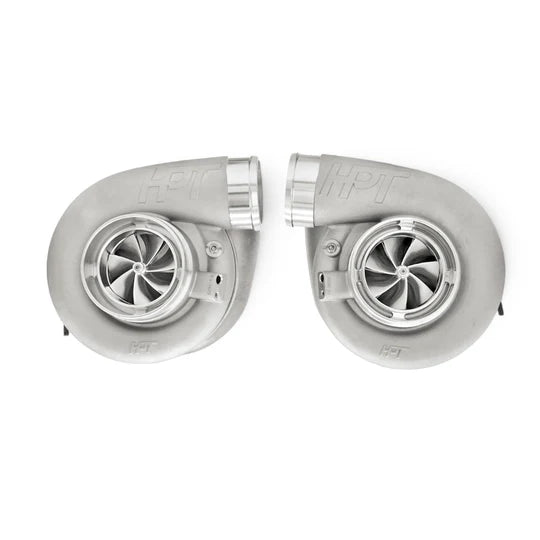

HPT F3 7675 V-Band Mirror Image

Capable of Supporting up to 2700 Horsepower

The F3 7675 Mirror Image Turbochargers are equipped with HPT's Quick Spool Technology, providing high efficiency with minimal lag.

Alongside the bearing system, HPT turbochargers boast superior aerodynamics with lightweight rotating groups. This combination of low-resistance bearings and optimized airflow allows for a larger turbo size without sacrificing transient response.

Features:

• F3 Compressor Cover w/ Ported Shroud
• 2618 Aluminum Compressor Wheel
• 713C Inconel Turbine Wheel
• Cast Iron Bearing Housing w/ Integrated Back Plate
• Ceramic Dual Ball Bearing System
• 310 Investment Cast Stainless Steel Turbine Housing

Specs:

• Compressor Cover Inlet: 4"
• Compressor Cover Discharge: 3"
• Compressor Wheel Inducer: 76.80mm

• Turbine Wheel Exducer: 75.60mm

Stainless Steel Turbine Housing Options:

• V-band Inlet V-Band Discharge 0.96 A/R
